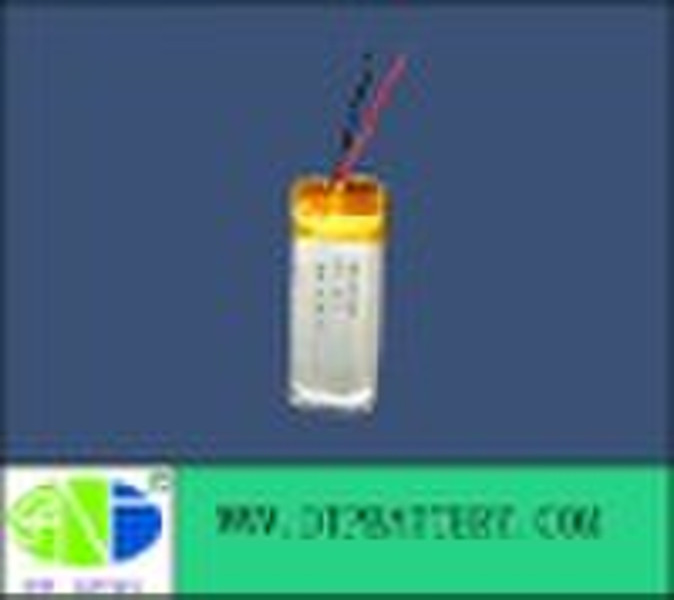

Li polymer battery with BMS
Sophia Zhang
Contact person
Basic Information
| Place of Origin | Guangdong China (Mainland) |
|---|---|
| Brand Name | dtp |
| Model Number | 501230 |
Li polymer battery with 1. Product Basic Characteristics NoItemCharacteristics1.1Rated Capacity120mAh1.2Nominal Voltage3.7V1.3Charge Limited Voltage4.20+0.03-0.02V1.4Discharge Cut-off Voltage3.0V1.5End-of-charge Current0.02C1.6Standard ChargeCharge with 1C(120mA) up to Limited Voltage , Charge with limited Voltage up to end-of-charge current. 1.7Standard DischargeUsing 0.2C(24mA) constant current discharge to the Discharge Cut-off Voltage. 1.8Maximum Continuous Charge Current1C120mA)1.9Maximum Continuous Discharge Current1C (120mA)1.10Operating Temperature RangeCharge 0 45 degreeDischarge – 20 60 degreeStorage Temperature Range-20 60 degree1.11Operating And Storage Humidity Range 65±20% RH1.12WeightLess than 3.0g2, Battery protection circuit datasheet: ParameterMinTyp.MaxUnitOvercharge Detection Voltage4.234.284.33VOvercharge Detection Delay Time0.961.4sOverdischarge Detection Voltage2.93.03.1VOverdischarge Detection Delay Time100200msOver Current Defection14AOver Current Detection Delay Time711msshort circuit Detection Delay Time200400μ SCurrent Consumption in Normal7μAImpedance70mΩ
Delivery terms and packaging
Packaging Detail: trays in the standard exporting carton with the size 38cm*28cm*26cm Delivery Detail: 10-25 work days
Port: HONGKONG
